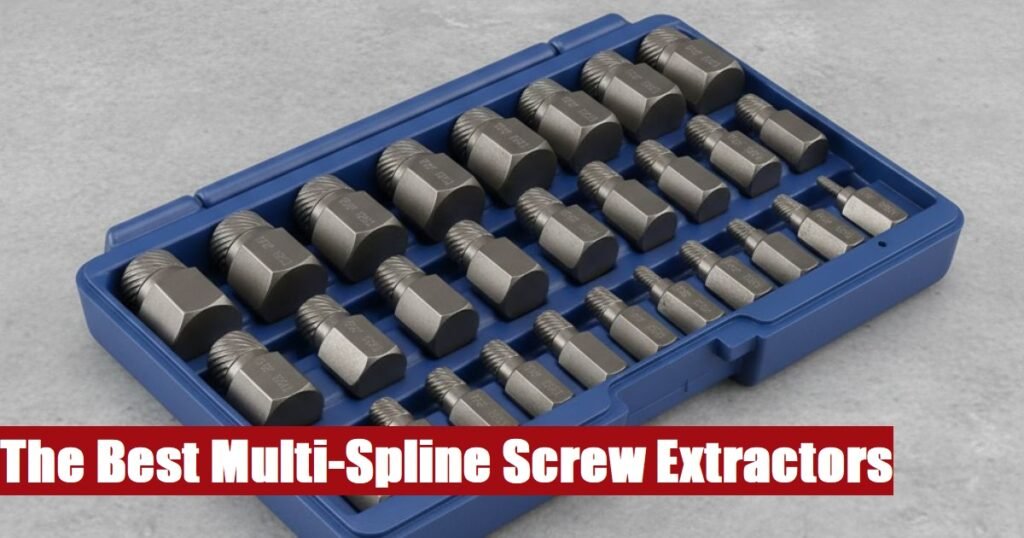

The Best Multi-Spline Screw Extractors: Top Picks and Buyer’s Guide

A stripped screw or a snapped bolt head can bring any project to a screeching halt, turning a simple task into a major source of frustration. When the head of a fastener is compromised, a standard driver or wrench is useless. This is the precise moment when a high-quality multi spline screw extractor becomes an indispensable hero in your toolbox, designed specifically to bite into damaged metal and turn a potential disaster into a minor inconvenience. Its unique design provides the grip needed to reverse a broken fastener out of its hole without damaging the surrounding threads.

Before we dive into our curated list of top-performing extractors, you might be interested in getting a broader overview of all the solutions available for damaged fasteners. If you’d like to explore our main article first, we invite you to check out our complete guide.

ToolsVanguard is reader-supported. When you buy through links on our site, we may earn an affiliate commission.

What Key Features Define a Modern Multi Spline Screw Extractor?

When you’re facing a stubborn, broken bolt, not just any tool will do. The difference between success and a much bigger problem often lies in the quality and design of the extractor you choose. We believe that understanding the core components of a superior multi spline screw extractor is the first step toward making a confident purchase. These are not simple tools; they are precisely engineered instruments designed for a high-stakes job.

Here are the key features and innovations you should look for:

• Material Quality: The foundation of a reliable extractor is the steel it’s made from. Look for tools forged from high-strength alloys like Chrome Molybdenum (Cr-Mo) or heat-treated High-Carbon Steel, which offer the toughness to withstand immense torque without chipping or shattering.
• Flute Design: The splines, or flutes, are the heart of the tool. An aggressive left-hand spiral or a sharp, straight flute design is engineered to increase its bite as more counter-clockwise force is applied, ensuring a secure grip that won’t slip. A well-designed spline extractor is key.
• Hex Head Design: A critical innovation is the hexagonal head. This allows you to use standard sockets, wrenches, or even pliers to turn the tool, providing significantly more leverage and control than older square-head designs that require a special tap handle. Many modern hex head multi spline screw extractors feature this design.
• Clear Size Markings: In the middle of a repair, you don’t want to waste time guessing sizes. High-visibility, laser-etched markings are crucial for quickly identifying the correct extractor, preventing mistakes and potential damage from using the wrong one.

Why Is Investing in a Quality Multi Spline Screw Extractor a Smart Decision?

It can be tempting to opt for a cheaper tool, but when it comes to extraction, this is a gamble you don’t want to take. A low-quality extractor can fail at the worst possible moment, snapping off inside the already broken fastener. This transforms a difficult situation into a near-impossible one, as you now face the challenge of removing hardened steel from within the original bolt. Investing in a dependable multi spline screw extractor is an insurance policy against this project-ending catastrophe.

Here’s why a quality set is a non-negotiable part of any serious toolkit:

• Performance and Reliability: Premium extractors feature precision-machined splines that grip effectively from the start. Cheaper alternatives often have dull or poorly formed flutes that slip, or they’re made from soft metal that deforms under pressure, leaving you right back where you started. A good multi spline bolt extractor will not let you down.
• Durability and Longevity: The best multi spline tools are heat-treated for the perfect balance of hardness and toughness, allowing them to withstand the intense forces of extraction and serve you for years. Low-cost versions can be brittle and snap on the first tough job.
• Enhanced Safety: A tool breaking under extreme torque is a significant safety hazard, with the potential to send sharp metal fragments flying. The robust construction of a well-made spline screw extractor makes the entire process safer and more predictable.
• Proven Success: Across countless forums and reviews, the message is clear: users who invest in reputable brands report a much higher success rate. A reliable spline extractor set pays for itself by saving a single critical project.

---

Our Curated Selection of the Best Multi Spline Screw Extractor Sets

After extensive research into material strength, gripping design, and user feedback, our team has curated this selection of the most effective and reliable extractor sets on the market. We have focused on models with robust construction and consistently positive performance to ensure you can choose a multi spline screw extractor that will rescue your project from the brink of failure. Each of these kits has been chosen to provide a dependable solution when you need it most.

Neiko 25-Piece Hex-Head Multispline Screw and Bolt Extractor Set (04204A)

This comprehensive 25-piece hex head multi spline extractor set from Neiko is engineered to be a complete solution for a wide range of broken fastener problems. Built from industrial-grade materials, it offers the toughness needed for high-torque applications while providing maximum versatility. This set is perfect for professional mechanics, maintenance technicians, and serious DIYers who demand a reliable toolkit that can handle nearly any fastener size encountered in a workshop setting.

• Material: Forged from durable, heat-treated Chrome Molybdenum (Cr-Mo) steel for superior strength.
• Design: Features aggressive multi-plane teeth with a left-hand spiral design for extra gripping power. The precision-machined hex heads allow for high torque application with sockets or wrenches.
• Sizing: This comprehensive multi spline set covers 25 sizes from 1/8″ (3.5mm) to 7/8″ (23mm) in 1/32″ increments.
• Features: Each extractor has laser-etched markings for clear size identification and a black oxide finish for corrosion resistance.
• Storage: Includes a durable blow-molded storage case for organization and portability.

For a complete and powerful solution that prepares you for virtually any extraction scenario, discover the capabilities of the Neiko 25-piece set and make it a cornerstone of your tool collection.

XEWEA 25-Piece Hex Head Multi-Spline Screw Extractor Set (XWEA-1016A)

The XEWEA 25-piece set stands out as a value-focused option that provides a truly comprehensive range of extractor sizes. Made from high-carbon steel, it’s designed to be a versatile kit for various removal tasks, featuring a left-handed spiral design for a strong bite. This multi spline screw extractor set is an ideal choice for the home mechanic or DIY enthusiast who wants a complete collection of extractors for occasional to moderate use without a significant financial investment.

• Material: Constructed from heat-treated high-carbon steel for hardness and durability.
• Design: The internal left-handed spiral flute design provides a strong, biting grip on damaged fasteners. A hex head allows for easy use with sockets, wrenches, or pliers.
• Sizing: A full 25-piece range covers sizes from 1/8″ all the way to 7/8″.
• Features: Each piece is marked with its size for quick identification and has a black finish to help resist corrosion.
• Storage: Comes in a blow-molded case for convenient storage and transport.

If you’re looking for a budget-friendly set that doesn’t compromise on size range, explore the XEWEA 25-piece kit and ensure you have the right tool for your next project.

Topec 25-Piece Hex Head Multi-Spline Screw Extractor Set (O-EX-25)

Positioned as a heavy-duty solution, the Topec 25-piece extractor set is built to handle demanding extraction jobs with confidence. Made from high-carbon steel often referred to as chrome-molybdenum, its precision-machined surfaces and aggressive spiral design are engineered for a tight grip on broken studs, bolts, and even threaded pipes. This is a great choice for mechanics and tradespeople seeking a robust, comprehensive hex head multi spline screw extractor set that delivers performance comparable to more expensive brands.

• Material: Made of heat-treated, high-carbon steel (Cr-Mo) for industrial-grade strength.
• Design: An internal left-handed spiral design provides extra grip and facilitates faster tapping. The hex head is designed for high-torque situations with sockets and wrenches.
• Sizing: The comprehensive 25-piece set includes sizes from 1/8″ to 7/8″.
• Features: Each extractor features a clearly marked size for easy selection and a corrosion-resistant finish.
• Model: O-EX-25.

To equip your workshop with a heavy-duty set that offers exceptional value and power, check out the Topec 25-piece extractor set today.

Irwin 10-Piece Multi-Spline Screw Extractor Set (53226)

From the renowned Irwin Hanson line, this 10-piece set is designed for professionals who demand unwavering reliability and performance. It focuses on the most common smaller sizes needed for high-torque applications. The aggressive spiral design and trusted build quality make this irwin multi spline extractor a powerful and user-friendly tool. It is ideal for professionals and serious DIYers who need a high-quality set of the most frequently used smaller extractor sizes and value the Irwin brand’s reputation.

• Material: Made from hardened steel for maximum strength and durability.
• Design: An aggressive left-hand spiral design provides extra gripping power on broken studs, bolts, and socket screws. The hex head allows for easy use with wrenches, pliers, or sockets.
• Sizing: Covers 10 common sizes: 1/8″, 5/32″, 3/16″, 7/32″, 1/4″, 9/32″, 5/16″, 11/32″, 3/8″, and 13/32″.
• Features: Sizes are etched on each tool for easy identification.
• Warranty: This irwin spline extractor is backed by a lifetime warranty.
• Storage: Comes in a durable plastic case.

When you need a compact, professional-grade kit you can absolutely count on, we highly recommend exploring the Irwin 10-piece set for your toolkit.

Irwin 15-Piece Multi-Spline Extractor Set (53228)

As an expansion of the popular Irwin Hanson line, this 15-piece set offers a broader range of sizes for greater versatility on the job. It maintains the professional-grade quality Irwin is known for, with a design focused on providing maximum gripping power to remove broken fasteners effectively. This irwin multi spline extractor set is perfect for the professional mechanic or dedicated hobbyist who needs the brand’s reliability but requires a wider range of sizes than the smaller 10-piece irwin multi spline ext set provides.

• Material: Made from high-quality, durable steel for a long service life.
• Design: Features an aggressive left-hand spiral design for superior gripping power in high-torque applications. The hex head is compatible with wrenches and sockets for applying maximum leverage.
• Sizing: This expanded irwin hanson hex head multi spline screw extractor set includes 15 pieces with sizes from 1/8″ through 9/16″.
• Features: The extractor size and recommended drill bit size are etched on each tool, a feature you’d expect from a quality hanson multi spline screw extractor.
• Storage: Includes a branded plastic storage case.

For those who trust the Irwin name but need a more versatile size selection for a wider array of repairs, the Irwin 15-piece set is the clear choice for your consideration.

EWK 25-Piece Multi-Spline Screw Extractor Set (SE04-025)

The EWK 25-piece set is designed to be a complete and user-friendly solution for tackling nearly any broken fastener. It features reverse threads that tighten their grip as you turn, providing a secure bite that inspires confidence. It’s a solid choice for anyone from a DIYer to a professional who wants a full, exhaustive kit that offers reliable performance. It performs similarly to the well-regarded icon multi spline extractor set but at a different price point.

• Material: Constructed from durable alloy steel for strength and longevity.
• Design: Reverse spiral flute threads provide a secure grip that tightens as torque is applied. The hexagon flats are designed for use with standard wrenches, sockets, or pliers.
• Sizing: A comprehensive kit covering 25 SAE sizes from 1/8″ to 7/8″ in 1/32″ increments.
• Features: Includes laser-etched markings for easy identification of sizes and is suitable for removing any stripped, broken, or rusted spline screw.
• Storage: Includes a carrying case for organization.

If a complete, user-friendly set with a smart gripping design sounds like the right fit for your needs, we encourage you to see what the EWK 25-piece set can do for you.

---

How to Select the Right Tool from Your Multi Spline Extractor Set?

Choosing the correct size extractor from your multi spline extractor set is just as important as the quality of the tool itself. Using an extractor that is too large for the pilot hole will prevent it from biting into the material, while one that is too small can concentrate too much force on a tiny area, risking a break. A little knowledge here ensures a successful extraction and protects your valuable tools.

Follow these guidelines for a successful outcome:

1. Consult the Guide: The best practice is to always consult the manufacturer’s recommendations. Many high-quality sets, like the ones we’ve featured, have the recommended drill bit size etched directly onto each extractor.
2. Rule of Thumb: If no guide is available, a good rule of thumb is to select an extractor whose tip has a slightly smaller diameter than the fastener’s shank, allowing the splines to firmly engage the sides of the pilot hole without bottoming out.
3. Test the Fit: Before applying force, gently insert the extractor into the drilled pilot hole. It should feel snug and engage the metal with a slight twist by hand.

The Importance of Brand and Warranty for a Spline Bolt Extractor

When you purchase a spline bolt extractor, you are buying a tool designed to perform under extreme stress. Because of this, the brand’s reputation and the warranty they offer are crucial considerations that reflect the manufacturer’s confidence in their product. A reputable brand often signifies better materials, more precise manufacturing, and reliable customer support, which can be invaluable.

Here’s what to keep in mind:

• Lifetime Warranty: A lifetime warranty is a powerful statement. It indicates that the manufacturer stands behind the tool’s construction and material quality, promising to replace it if it fails under normal use.
• Brand History: Brands like Irwin have a long and proven history of producing reliable tools trusted by professionals for decades. This legacy is built on consistent performance and quality.
• Replacement Availability: In a professional setting, tools can get lost or eventually wear out. The ability to purchase a single replacement extractor is far more cost-effective than being forced to buy an entirely new set.

Best Practices for Using a Hex Head Multi Spline Extractor

To get the most out of your hex head multi spline extractor, proper preparation and technique are essential. Rushing the process is the most common cause of failure. By taking a few extra moments to set up the job correctly, you dramatically increase your chances of a smooth and successful extraction, turning a frustrating problem into a satisfying fix.

Maximize your effectiveness with these key steps:

• Center Your Pilot Hole: Always use a center punch to create a small indent in the exact center of the broken fastener. This crucial step prevents your drill bit from wandering and ensures the extractor is perfectly aligned.
• Use Penetrating Oil: Before drilling, apply a high-quality penetrating oil to the threads of the broken fastener. Let it soak in to help break the bond of any rust or corrosion that is holding it in place.
• Apply Slow and Steady Pressure: The hex head is designed for high leverage with a hand tool like a wrench or socket. Apply slow, steady, and even counter-clockwise pressure. Avoid using impact wrenches, as the sudden, sharp torque is the leading cause of snapped extractors.

Equip Yourself for Success

Ultimately, a stripped screw or broken bolt doesn’t have to mean the end of your project. Having the right tool on hand transforms a potential crisis into a manageable task. The extractors we’ve reviewed are designed to provide the bite and strength necessary to overcome these common but frustrating obstacles. By choosing a quality set, you are not just buying a tool; you are investing in the confidence to tackle any repair that comes your way. We are confident that selecting the right multi spline screw extractor from our guide will equip you to get the job done right.

---
